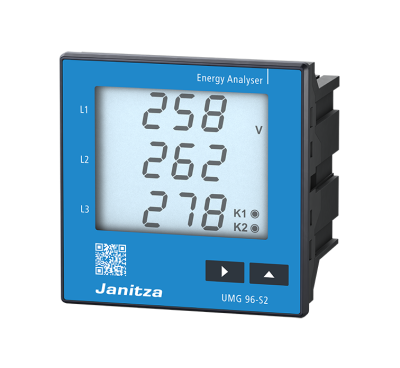

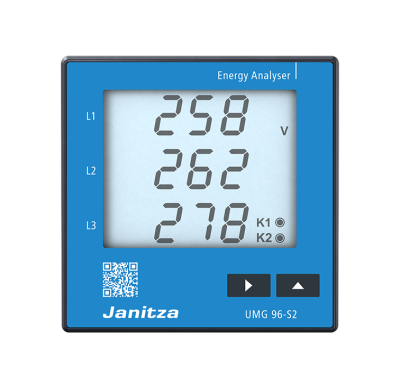

UMG 96-S2 Backlight, 90-265V

UMG 96-S2 – 5234002: Compact Three-Phase Network Analyzer for Precise Power Monitoring and Control

The UMG 96-S2 by Janitza® is a modern three-phase measuring device designed for accurate energy consumption monitoring and network quality analysis. With a nominal voltage of up to 277/480 V AC and a power supply shared with the measurement input, it’s an ideal solution for installations where space is limited.

Equipped with RS232 and RS485 interfaces, the device fully integrates with GridVis® software for intuitive data visualization, evaluation, and reporting.

Smart Energy Management – Beyond Basic Measurement:

For effective power monitoring and energy transparency, it's essential to measure beyond the main supply. Identifying disruptions or energy losses requires detailed data collection throughout multiple points in the network.

The UMG 96-S2 is ideal for:

• Measuring electrical parameters and energy consumption

• Monitoring harmonics and power quality indicators

• Cost center tracking or acting as a sensor for building automation and PLC systems

Key Technical Features:

• Versatile Applications:
  Compatible with TN and TT systems, supports 1 A / 5 A current transformers

• High Measurement Accuracy:
  Active energy metering with accuracy class 0.5S

• Compact Design:
  Minimal installation depth – ideal for tight panel spaces

• Easy System Integration:
  Open Modbus RTU communication for seamless integration with higher-level systems

• Quick Configuration:
  User-friendly interface with minimal setup requirements

• Data Visualization and Reporting:
  Full support for GridVis® Basic – data logging, real-time visualization, and reporting

• High Compatibility:
  Works with standard measuring transformers without the need for adjustments

• Tariff Switching:
  Built-in tariff change feature for transparent tracking of consumption and energy costs

The UMG 96-S2 is the perfect solution for companies seeking a precise, space-saving, and flexible energy monitoring system with integrated power quality diagnostics.
