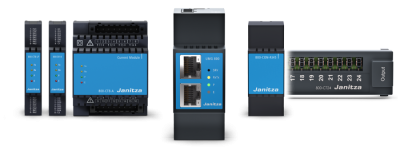

UMG 800

Modular & Future-Proof Design

• Supports up to 13 plug-in modules for tailored functionality

• Flexible configuration to adapt to evolving measurement needs

• Expansion without replacing the base unit, making it a future-ready investment

• Real-time monitoring of harmonics up to the 63rd order

• Detection of transients with 18 μs resolution

• Detailed event analysis and threshold monitoring

• Compact 2-unit base with expansion modules from 1 to 4 units

• Designed for tight installation spaces like sub-distribution boards and retrofit applications

Data Centers:

• Monitor energy consumption across PDUs and RPPs

• Generate reliable KPIs (e.g. PUE3) to optimize efficiency

• Reduce per-channel cost with up to 32 feeder measurements per unit

• Ideal for high-density monitoring in space-constrained environments

Industrial Applications:

• Supports ISO 50001-compliant energy management

• Detects load peaks, network disturbances, and energy losses

• Fits into local panels for real-time monitoring near machines

Energy Suppliers:

• Meets the requirements of § 14a EnWG for grid transparency

• Real-time response capability with 5-minute control signal readiness

• Ideal for retrofitting existing substations and grid nodes

• Built-in web server for browser-based configuration and diagnostics

• Remote maintenance and visualization with RD 96 remote display

• Create virtual meters to reduce hardware cost by up to 25%

• Store and evaluate data using 4 GB internal memory

• OPC UA, Modbus TCP/IP, and SFTP for secure data transmission

• Dual Ethernet with daisy-chain and switch functionality for flexible networking

• Detects transients, flicker, and harmonic distortions

• 125 comparators in 32 groups for precise threshold analysis

• Early warning system for overcurrent, network faults, or anomalies

• Real-time event capture and alerting

• Built-in white list, address maps, and Modbus tools for fast commissioning
