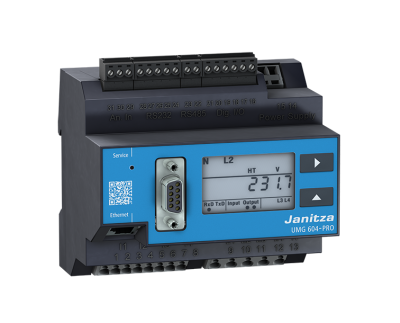

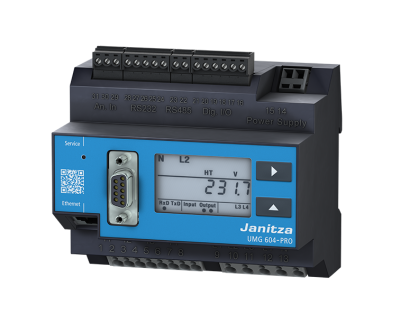

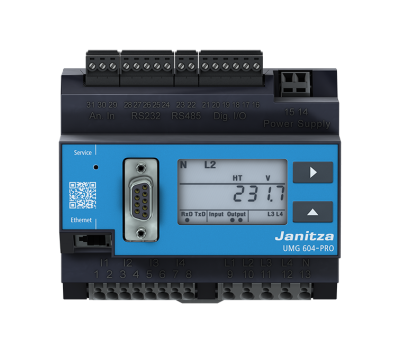

UMG 604 E-PRO 230V (UL)

Key Features and Benefits of UMG 604

Power Quality Analysis:
Measures harmonics up to the 40th order, unbalance, THD (voltage and current), sequence components (positive, negative, zero), short-term interruptions (> 20 ms), and transient events (> 50 μs).

Integrated Web Server:
Access measurement data directly through a standard web browser – no software installation required. The web interface provides a user-friendly homepage, live and historical data, event logs, and supports extended functionality through APP applications.

Modular Communication:
Supports Ethernet, Modbus RTU, Profibus (for UMG 604-EP PRO), and other protocols for seamless integration into higher-level systems. The device can also operate as a Modbus gateway, enabling additional devices to be connected within the network.

Custom Programming (Jasic®):
Create user-defined functions using the graphical programming language Jasic®, or write custom code directly. Up to 7 user programs can run in parallel, for example to monitor thresholds or trigger alerts.

Advanced Logging Capabilities:

• Internal memory: 128 MB, up to 5,000,000 recorded values

• Configurable logging intervals

• Historical data retention up to 2 years

• Integrated PQ monitor for tracking deviations based on IEC 61000-2-4 / EN 50160 standards

Mounting & Application:

• DIN rail 35 mm (6TE) – quick and easy installation into panels

• Significant time and cost savings during installation

• Ideal for integration into main low-voltage distribution boards, building electrical systems, machine panels, data centers, and IT infrastructures

UMG 604 is the ideal solution for professionals seeking a reliable device for measuring, analyzing, and optimizing electrical energy consumption, with comprehensive power quality monitoring included.
