SVG Ultra 30kvar, 400V, 50Hz

Sinexcel Ultra SVG 30 kvar

is a modern device for reactive power compensation in three-phase 400 V networks. This static var generator (SVG) ensures fast and smooth power factor correction in the range of -1 to +1 and helps reduce reactive energy costs. Thanks to its extremely fast response time of up to 15 ms, it reacts instantly to load changes, making it ideal for industrial operations, manufacturing plants, and commercial buildings.

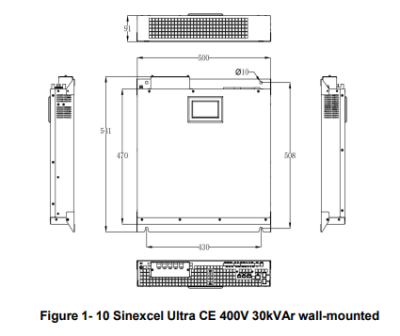

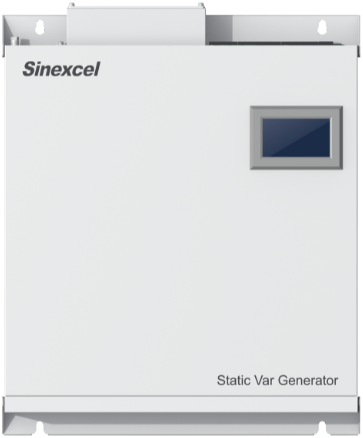

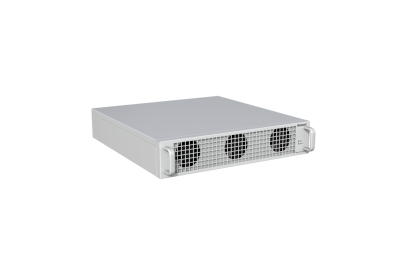

Design: These are rack-type modules (for switchboard installation) that can also be wall-mounted using installation brackets (Wall-mount).

SiC MOSFET technology enables high efficiency of up to 99%, stable operation, and long service life. The device supports Modbus RTU/TCP communication, allowing easy integration into metering and energy management systems.

Main advantages of Sinexcel Ultra SVG 30 kvar

• 30 kvar output for effective reactive power compensation
• Extremely fast response < 15 ms for dynamic operations
• Instantaneous response up to < 50 μs at high frequencies
• Device efficiency up to 99%
• Compensation even under three-phase imbalance
• Support for harmonic components in the 3rd–13th harmonic range
• Communication via Modbus RTU and TCP/IP for easy integration into monitoring and control systems
• Clear HMI display (wall-mounted version 4.3")
• Built-in electrical protections and diagnostics
• Certification: CE
• Maintenance-free operation

Operating parameters

• Rated voltage: 400 V
• Frequency: 50/60 Hz (auto-sensing in the range of 45–62.5 Hz)
• Cooling: air-cooled
• Protection class: IP20
• Noise level: < 60 dB
• Operating temperature: -10 to +50 °C
• MTBF: 100,000 hours
• Overcompensation protection
• Overvoltage and undervoltage protection

Applications of Sinexcel Ultra SVG 30 kvar:

• manufacturing plants
• low-voltage substations
• buildings with variable loads
• applications requiring high power quality

Sinexcel SVG 30 kvar is a reliable solution for improving power factor, stabilizing the grid, and eliminating penalties from the electricity distributor.

We are happy to help you select the optimal solution tailored precisely to your needs. We provide professional consulting, complete installation, and subsequent technical support.
You can send your inquiries and requests to: kbh@kbh.cz
