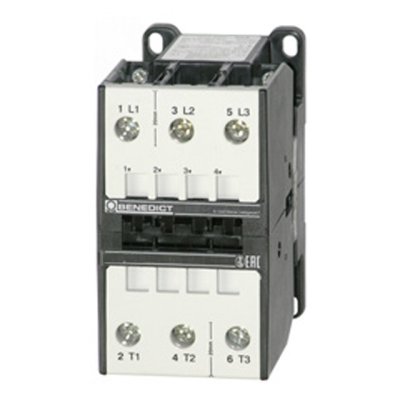

K3-74A00-230V contactor

The K3-74A00-230V contactor by Benedikt & Jäger is a three-pole device designed for switching electrical circuits with a rated operational current of up to 74 A at 400 V in AC-3 category. It features a coil voltage of 230 V AC/DC, ensuring versatile ...

Order number: K3-74A00

Add to compare list Add to favourites

The K3-74A00-230V contactor by Benedikt & Jäger is a three-pole device designed for switching electrical circuits with a rated operational current of up to 74 A at 400 V in AC-3 category. It features a coil voltage of 230 V AC/DC, ensuring versatile use in various applications.

Technical Specifications

Parameter	Value
Number of Poles	3
Rated Operational Current (Ie)	74 A at AC-3, 400 V
Rated Power	37 kW at AC-3, 400 V
Coil Voltage	230 V AC/DC
Coil Voltage Range	220–240 V AC, 50/60 Hz; 220 V DC
Operating Temperature	-40 °C to +90 °C
Connection	Screw terminals
Auxiliary Contacts	None (0 NO + 0 NC)
Mounting	DIN rail or screw mounting
Protection Rating	IP20

Advantages

Compact Design: Saves space with its small footprint.
High Durability: Operates reliably in a wide temperature range from -40 °C to +90 °C.
Versatile Use: AC/DC coil compatibility broadens application scope.

The K3-74A00-230V contactor is ideal for reliable control of electric motors and other loads in industrial systems, emphasizing performance and reliability.

Jmenovité napětí	230
Výkon kvar 400 V - 440 V	75
Výkon kvar 660 V - 690 V	100
Jmenovitý proud [A]	108
Width [mm]	60
Depth [mm]	96
Height [mm]	110
Hmotnost v [g]	850
Mounting type	For DIN rail
Provozní teplota	-40... +60 °C

Návody

Benedict kompenzační stykače katalog EN.pdf

Stáhnout

Stykače K3-50A00---K3-74A00.pdf

Stáhnout
