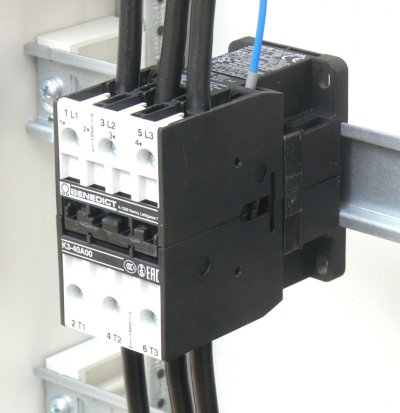

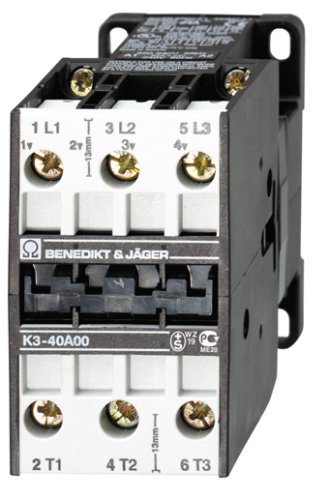

K3-40A00-230V contactor

We will be happy to advise you:

+420 777 730 002 +420 777 730 004 kbh@kbh.cz

K3-40A00-230V contactor

The K3-40A00-230V contactor by Benedikt & Jäger is a three-pole device designed for switching electrical circuits with a rated operational current of up to 40 A at 400 V in AC-3 category. It features a coil voltage of 230 V AC, ensuring versatile use ...

zobrazit více

Objednací číslo: K3-40A00

Add to compare list Add to favourites

The K3-40A00-230V contactor by Benedikt & Jäger is a three-pole device designed for switching electrical circuits with a rated operational current of up to 40 A at 400 V in AC-3 category. It features a coil voltage of 230 V AC, ensuring versatile use in various applications.

Technical Specifications

Parameter	Value
Number of Poles	3
Rated Operational Current (Ie)	40 A at AC-3, 400 V
Rated Power	18.5 kW at AC-3, 400 V
Coil Voltage	230 V AC
Coil Voltage Range	220–240 V AC, 50/60 Hz
Operating Temperature	-40 °C to +90 °C
Connection	Screw terminals
Auxiliary Contacts	None (0 NO + 0 NC)
Mounting	DIN rail or screw mounting
Protection Rating	IP20

Advantages

Compact Design: Saves space with its small footprint.
High Durability: Operates reliably in a wide temperature range from -40 °C to +90 °C.
Versatile Use: AC coil compatibility broadens application scope.

The K3-40A00-230V contactor is ideal for reliable control of electric motors and other loads in industrial systems, emphasizing performance and reliability.

Jmenovité napětí	230
Výkon kVAr 400 V - 440 V	18,5
Výkon kVAr 660 V - 690 V	48
Jmenovitý proud [A]	42
Šířka [mm]	45
Hloubka [mm]	87,5
Výška [mm]	74
Hmotnost v [g]	480
Montáž	DIN lišta
Provozní teplota	-40.. +60 °C

Návody

Benedict kompenzační stykače katalog EN.pdf

Stáhnout

Stykače -K3-24A00---K3-40A00.pdf

Stáhnout
