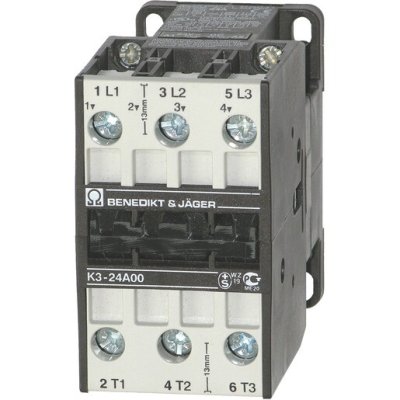

K3-24A00-230V contactor

The K3-24A00-230V contactor by Benedikt & Jäger is a three-pole device designed for switching electrical circuits with a rated operational current of up to 24 A at 400 V in AC-3 category. It features a coil voltage of 230 V AC, ensuring versatile use ...
The K3-24A00-230V contactor by Benedikt & Jäger is a three-pole device designed for switching electrical circuits with a rated operational current of up to 24 A at 400 V in AC-3 category. It features a coil voltage of 230 V AC, ensuring versatile use in various applications.
zobrazit více
zobrazit méně
33,11 € excl. VAT
40,06 € incl. VAT

Recycling fee 1 € included in the price

Objednací číslo: K3-24A00

The K3-24A00-230V contactor by Benedikt & Jäger is a three-pole device designed for switching electrical circuits with a rated operational current of up to 24 A at 400 V in AC-3 category. It features a coil voltage of 230 V AC, ensuring versatile use in various applications.

Technical Specifications

Parameter Value
Number of Poles 3
Rated Operational Current (Ie) 24 A at AC-3, 400 V
Rated Power 11 kW at AC-3, 400 V
Coil Voltage 230 V AC
Coil Voltage Range 220–240 V AC, 50/60 Hz
Operating Temperature -40 °C to +90 °C
Connection Screw terminals
Auxiliary Contacts None (0 NO + 0 NC)
Mounting DIN rail or screw mounting
Protection Rating IP20

Advantages

  • Compact Design: Saves space with its small footprint.
  • High Durability: Operates reliably in a wide temperature range from -40 °C to +90 °C.
  • Versatile Use: AC coil compatibility broadens application scope.

The K3-24A00-230V contactor is ideal for reliable control of electric motors and other loads in industrial systems, emphasizing performance and reliability.

Jmenovité napětí 230
Výkon kVAr 400 V - 440 V 11
Výkon kVAr 660 V - 690 V 33
Jmenovitý proud [A] 28
Šířka [mm] 45
Hloubka [mm] 87,5
Výška [mm] 74
Hmotnost v [g] 480
Montáž DIN lišta
Provozní teplota -40.. +60 °C
