SILAS SB NH000 60 AU R4

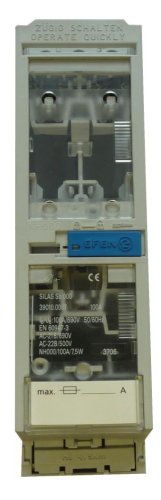

SILAS SB NH000 60 AU R4 switch disconnector – 39010.0007 – fuse switch disconnectors, 690 V AC, 3-pole, for 60 mm busbar system, mounting depth 32 mm, hook connection, frame terminal 2.5–50 mm², bottom outlet.

Order number: 39010.0007

Add to compare list Add to favourites

Description
Support

Technical Specifications

Size: 000
Operation: 3-pole
Weight [kg]: 0.53
Rated current at Un = 690 V [A]: 100
Rated thermal current Ith [A]: 100
Rated operational voltage Ue [V]: 690
Rated insulation voltage Ui [V]: 1000
Rated impulse withstand voltage Uimp [V]: 6000
Rated frequency [Hz]: 50
Utilization category at Ue = 400 V: AC-23B
Utilization category at Ue = 690 V: AC-21B
Utilization category at Ue = 440 V DC: DC-21B
Mechanical durability [cycles]: 2000
Permissible ambient temperature [°C]: -25 to +55
Degree of protection: IP 3X
Maximum losses of NH fuse-link [W]: 7.5
Busbar connection: Hooks
Outlet direction: downwards
Cable connection: Frame terminals
Mounting method: 60 mm busbar system
