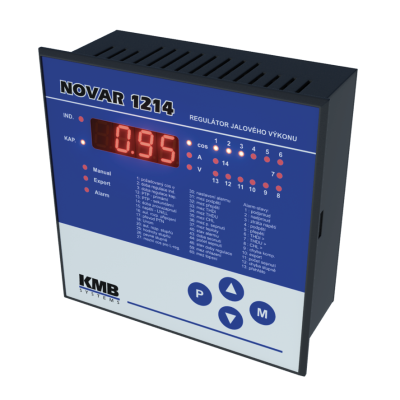

NOVAR 1214-4 - power factor controller

NOVAR 1214-4 - power factor controller 90 - 275 V AC, 14 stages, alarm relay, separate power supply, 144x144mm. Regulators are fully automatic devices that monitor the state of the LV/VV distribution network and, based on fast and accurate calculations, connect or disconnect individual compensation or decompensation stages (capacitors, decompression inductors) to achieve the desired power factor.

zobrazit více

Objednací číslo: N1214-4

Add to compare list Add to favourites

NOVAR 1206 and NOVAR 1214 power factor controllers are fully automatic instruments. It features separated power supply terminal for projects with specific AC or DC power supply requirements, battery backups etc. It also offers input for an external second tariff control signal.

It features a precise voltage and current measurement circuit with high accuracy of both true RMS values of voltage and current as well as accurate power factor measurement. The built-in temperature sensor measures the temperature inside the distribution board cabinet.

The instrument’s installation is fully automatic. The controller detects both the connection configuration and the value of each compensation section connected. Entering these parameters manually at a later stage is also possible.

Key features

panel version NOVAR 1206 or 1214, installation size 144x144 mm
measuring voltage input separated from power supply input
up to 14 outputs and 1 alarm relay
input for 2nd tariff
optional RS-485 serial line for remote setup and control
optional supply voltage up to 500 V (/S400 models)
automatic setup and simple configuration
precise measurement and control functions under distortion
evaluation of total harmonic distortion
evaluation of current harmonic load for capacitor protection
built-in temperature sensor
optional alarm or cooling/heating control relay

Reléový výstup	14
Napájecí napětí	90 - 275 V AC, oddělené
Citlivost	2 mA
Kategorie přepětí	III - do 300V DC
Požadovaný účiník	0,8 ind. ÷ 0,8 kap.
Komunikační rozhraní	BEZ
Šířka [mm]	144
Hloubka [mm]	80
Výška [mm]	144
Hmotnost v [g]	700
Montáž	Panel
Software	NE
Protokoly	BEZ
Relativní vlhkost	5 až 100 %
Nastavení hodnot stupňů	automatické nebo ruční
Nastavení způsobu připojení	automatické nebo ruční
Rozsah měřené teploty/přesnost	-30 ÷ 60 °C, ± 5 °C
Provozní teplota	-40.. +60 °C
Stupeň krytí	zadní panel - IP20, čelní panel - IP40 (případně IP54)
