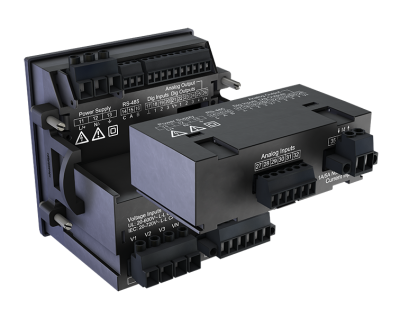

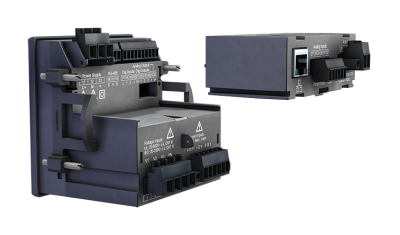

Modul 96-PA-RCM-EL

The 96-PA-RCM-EL module by Janitza® offers advanced expansion capabilities for UMG 96-PA series measuring devices, enabling residual current monitoring, DC power measurement, neutral conductor current measurement (I4), and temperature acquisition. With its compact 96 × 96 mm front panel, Ethernet interface, and Modbus gateway, integration into existing systems is fast and seamless.

Key Features and Expansion Options:

• Measurement of residual currents and DC power

• Temperature logging and monitoring using the integrated comparator

• 4th current input (I4) for neutral conductor monitoring

• Ethernet gateway with Modbus TCP support

• Connect up to 30 MID energy meters as slave devices (e.g., B23 312-10J)

Efficient Energy Management Across the Network:

Measuring at the main feed-in point is no longer sufficient. For true energy transparency, it’s essential to collect and analyze data from multiple network locations. With this module, the UMG 96-PA series provides comprehensive monitoring of consumption, voltage quality, fault detection, and leakage currents – all in one system.

• Direct voltage measurement up to 500 V without voltage transformers

• Early detection of residual currents helps prevent damage and downtime

• Improved system availability and operational safety

Legal Compliance and Billing-Capable Measurement:

• MID-certified according to 2014/32/EU – suitable for billing purposes

• Compatible with 1 A / 5 A current transformers and optional 100 V voltage transformer

• Secured event log for legally relevant changes (e.g., CT ratio adjustments)

• Password protection and sealable terminal covers

Report Generation and Readouts via GridVis®:

• Easy generation of meter reading reports using GridVis® software

• Overview of consumption, measurement values, and accumulated energy

• Create custom reports with support for up to 5 EEG exemption classes

• Export raw data for comparison and evaluation

Key Advantages at a Glance:

• Expansion of basic measurements with critical parameters

• Broad system connectivity and modular flexibility

• High compatibility with conventional measuring transformers

• All core functions of the base device remain fully available

The 96-PA-RCM-EL module is the ideal add-on for anyone seeking a precise, legally compliant, and scalable metering solution for power management in buildings, industrial facilities, and infrastructure projects.
