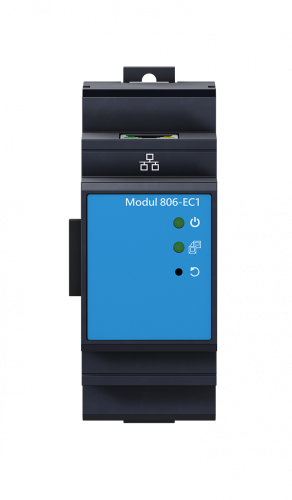

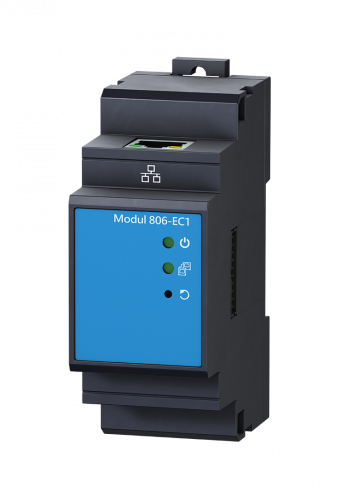

Modul 806-EC1(UL)

Ethernet Communication Module 806-EC1 for UMG 806 – Expansion for Modbus TCP and SNMP

The 806-EC1 is an Ethernet communication expansion module designed for the UMG 806 energy meter by Janitza®. It enables seamless network integration and adds support for Modbus-TCP and SNMP v2c protocols, making it easy to connect to upper-level systems and energy monitoring platforms.

Technical Specifications:

• Dimensions (L × W × H): 63.5 × 36 × 90 mm

• Mounting width: 18 mm

• Protection class: IP20

• Color: Blue / Black

• Weight: 80 g

• Category: Expansion module

Functional Upgrade for UMG 806 Metering System:

The UMG 806 base unit is a high-performance, cost-effective device for power and energy measurement. In addition to standard Modbus RTU support, it enables residual current monitoring, improving system safety and reducing downtime.

To expand its capabilities, the UMG 806 can be enhanced with three add-on modules:

• Ethernet module (806-EC1) – network integration via Modbus-TCP / SNMP

• Analog input module

• Digital input module

Reliable Energy Monitoring Across the Network:

To ensure transparency in energy consumption and detect inefficiencies, it's essential to measure data from multiple points within the network—not just at the main feed. The modular design of the Janitza UMG 806 allows precise harmonic analysis, residual current detection, and power quality monitoring exactly where it's needed.

Typical applications include:

• Data centers

• Industrial power distribution systems

• Commercial buildings with advanced energy management systems

The Ethernet Module 806-EC1 is the perfect expansion for users who want to enhance the communication capabilities of the UMG 806 and gain a deeper understanding of energy usage in real time.
