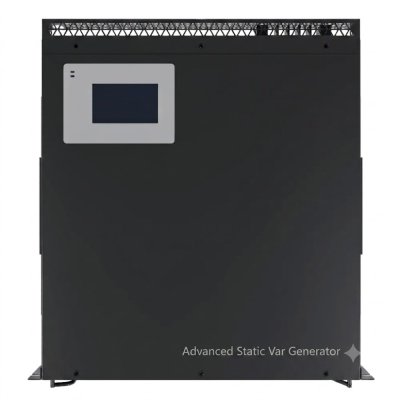

KVARBOX-A 10 kvar, 400 V, 3P4W

We will be happy to advise you:

+420 777 730 002 +420 777 730 004 kbh@kbh.cz

KVARBOX-A 10 kvar, 400 V, 3P4W

KVARBOX-A 10 kvar Advanced Static Var Generator with Active Filtering (ASVG) for a comprehensive 2-in-1 power quality solution. This module reliably eliminates 2nd to 25th odd harmonics with a filtering efficiency exceeding 90–97%. It features a robust 3L IGBT architecture and an ultra-fast response time (≤ 5 ms). These are wall-mount modules that can be easily installed on a wall using mounting brackets.

Order number: 15010000

Add to compare list Add to favourites

KVARBOX-A is an advanced Static Var Generator with Active Filtering (ASVG) for a comprehensive 2-in-1 power quality solution. This module reliably eliminates 2nd to 25th odd harmonics with a filtering efficiency exceeding 90–97%. It features a robust 3L IGBT architecture and an ultra-fast response time (≤ 5 ms). It provides maximum protection even for facilities with a high density of non-linear loads (frequency converters, LED lighting, switched-mode power supplies).

Lightning-fast response to grid fluctuations: The total device response time is under 40 ms (< 40 ms). The ASVG can immediately react to sudden load changes in the grid and prevent power supply destabilization.
High energy efficiency: System efficiency reaches ≥ 97%. For facilities (such as hospital campuses), this means minimal thermal losses during compensation and significant electricity cost savings.

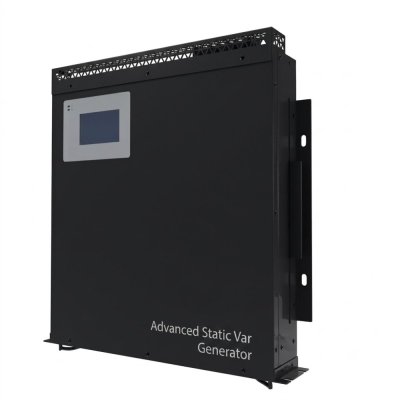

Wall-mount design: These are wall-mount modules that can be easily installed on a wall using mounting brackets.

Key Applications

Reactive power compensation, phase load balancing + active harmonic filtering for:

Low-voltage substations
Manufacturing and industrial plants
Buildings with dynamic or variable loads
Applications with high power quality requirements

Technical Specifications

Parameter	Value / Specification
Harmonic Filtering	2nd to 25th odd harmonics
Nominal Voltage	AC 400 V ±15 %
Electrical Connection	3-phase 4-wire (with Neutral wire support)
Hardware Topology	3-level (3L) with IGBT
Control Technology	DSP + FPGA with intelligent FFT analysis
Total / Instantaneous Response	≤ 5 ms / ≤ 50 µs
User Interface	Touchscreen LCD display
Parallel Connection	Up to 12 units
Thermal Losses	≤ 2.5% to 3%
Communication	Modbus, RS485
Cooling & Noise Level	Forced cooling, < 65 dB(A)
IP Rating	IP20
Recommended Operating Temperature	-10 °C to +50 °C

KVARBOX-A is a reliable solution for improving power factor, stabilizing the grid, and eliminating penalties from the electricity distributor.

We will be happy to help you select the optimal solution, tailored precisely to your needs. We provide expert consulting, complete installation, and subsequent technical support.

Please send your inquiries and requests to our email: kbh@kbh.cz

Brand name	KVARBOX-A
Rated voltage [V]	400 V
Compensation power Q [kvar]	10
Communication interface	Modbus, RS-485
Height [mm]	490
Width [mm]	460
Depth [mm]	88
Weight [g]	17000
Mounting type	Wall-mount
Protocols	Modbus RTU
Relative humidity	5 % až 95 %, bez kondenzace
Connection	3P4W
Operating temperature	-10... +50 °C
Noise level [dB]	60 dB
Degree of protection / IP rating	IP20
HMI display	4.3
