K3-K3-10NA00-40 230 contactor
We will be happy to advise you:
K3-K3-10NA00-40 230 contactor

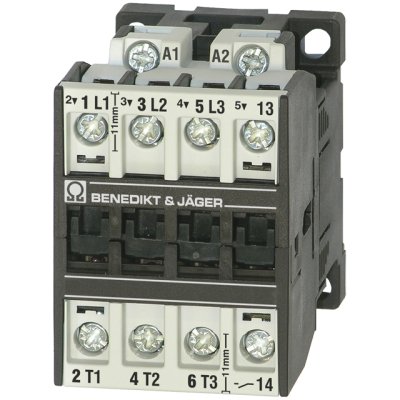

The K3-10NA00-40 three-pole contactor from the renowned manufacturer Benedict & Jäger is designed for switching three-phase loads up to 40 A. It features a robust design, long service life, and easy installation in electrical panels.
Order number: P00282
Contactor K3-10NA00-40 (3P, 40 A) – Benedict & Jäger
-
Number of poles: 3 power poles (3P)
-
Auxiliary contacts: 1x NO (normally open)
-
Rated current: 40 A
-
Coil voltage: depending on selected variant (e.g., 230 V AC)
-
Mounting: DIN rail or screw mounting
-
Suitable for: switching electric motors, resistive loads, lighting, and other industrial applications
Benefits:
-
Long electrical and mechanical lifetime
-
High-quality construction from a European manufacturer
-
Compatible with common industrial and automation systems
The K3 series contactors are an ideal choice for professional use in electrical installations, switchboards, and automation systems.
| Rated voltage [V] | 230 V |
|---|---|
| Rated current [A] | 42 |
| Power [kvar] at 400–440 V | 17,5 |
| Power [kvar] at 660–690 V | 48 |

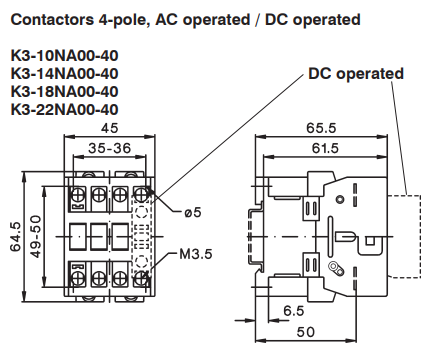

| Width [mm] | 35 |
| Depth [mm] | 65 |
| Height [mm] | 65 |
| Weight [g] | 230 |
| Mounting type | For DIN rail |
| Operating temperature | -40... +60 °C |
