ASVG Ultra 200kvar, 400V, 50Hz

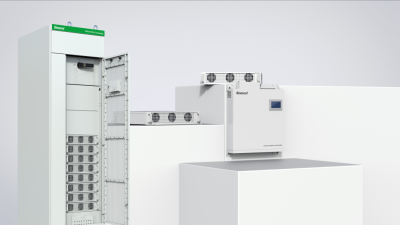

Sinexcel Ultra ASVG 200 kvar is an advanced next-generation Static Var Generator featuring a 3-in-1 function. It provides fast reactive power compensation, phase balancing, and active harmonic filtering (3rd–13th order harmonics). With a response time of <15 ms, efficiency of up to 99%, and support for Modbus communication protocol, it is an ideal solution for modern industrial facilities, buildings with LED lighting, and applications using frequency converters. These are rack-type modules that can be wall-mounted using installation brackets.

Order number: 15200023

Add to compare list Add to favourites

Sinexcel Ultra ASVG 200 kvar – Advanced Static Var Generator (3-in-1)

Sinexcel Ultra ASVG 200 kvar (Advanced Static Var Generator) represents a modern device for comprehensive power quality management in three-phase electrical networks. Unlike standard SVG compensators, ASVG offers a range of advanced features that make it a universal solution for today’s energy systems.

This model operates as a 3-in-1 device, combining in one compact unit:

reactive power compensation – compensation of both inductive and capacitive components
phase balancing – three-phase network equalization and relief of supply components
active filtering of low-order harmonic currents, reducing neutral conductor load

As a result, it not only improves the power factor but also stabilizes grid voltage and compensates for the negative effects of modern non-linear loads with electronically controlled power.

Technical Parameters of Sinexcel Ultra ASVG 200 kvar

Power rating: 200 kvar
Voltage: 3x400/230 V AC (3-phase, 4-wire)
Target power factor range: 0.1 inductive to 1.00 up to 0.1 capacitive
Response time: < 15 ms
Instantaneous reaction: < 50 μs
Harmonic filtering: 3rd–13th current harmonics
Phase balancing: Yes
Efficiency: ≥ 98.5%
Cooling: air-cooled
Noise level: < 64 dB
Operating temperature: -10 to +50 °C
MTBF: 100,000 hours
Overcompensation protection
Overvoltage and undervoltage protection
Protection class: IP20
Communication: Modbus RTU, Modbus TCP
Mounting: Rack-mount or Wall-mount (rack or wall installation)
Parallel operation: Yes (unlimited power expansion)
Frequency: 50/60 Hz (auto-sensing in the range of 45–62.5 Hz)
Certification: CE
Maintenance-free operation

Applications of Sinexcel Ultra ASVG 200 kvar:

industrial facilities with frequency converters
commercial buildings and offices, shopping centers, mixed-use buildings
facilities with LED lighting
networks with harmonic distortion
applications requiring high power quality

We will be happy to help you select the optimal solution tailored precisely to your needs. We provide professional consulting, complete installation, and ongoing technical support.
You can send your inquiries and requests to: kbh@kbh.cz

Rated voltage [V]	3x400/230 V AC (3f, 4w)
Compensation power Q [kvar]	100
Required power factor	0,1ind..1,00 až 0,1 kap
Communication interface	RS485, Ethernet (RJ45)
Width [mm]	500
Depth [mm]	220
Height [mm]	600
Weight [g]	60000
Protocols	Modbus RTU, TCP/IP
Relative humidity	5 % až 95 %, bez kondenzace
Connection	3P4W
Operating temperature	-10... +50 °C
Operating/storage temperature	-40 ...+70 °C
Lifetime	100 000 hod
Noise level [dB]	64 dB
Degree of protection / IP rating	IP20
Cooling	přirozené vzduchem nebo nucené
HMI display	4.3

Návody

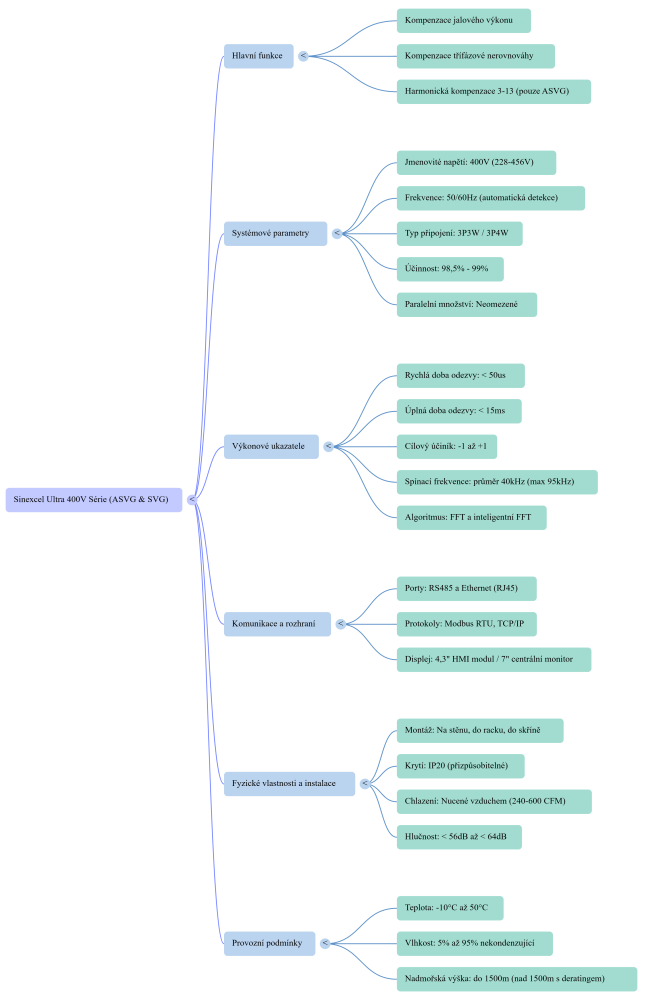

Technická specifikace Sinexcel Ultra ASVG.png
